我們的32.768kHz晶體振蕩器(XO)具有適用于各種應用的卓越性能。我們的產品包括世界上最小的32.768kHz晶體振蕩器 (XO)，尺寸僅為2.0x1.6mm（KM系列）。KM系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供KX系列晶體振蕩器，它們是業界功耗最低（小于 10 µA）和最嚴格穩定性 (+/- 20 ppm) 的 32kHz XO。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于32.768k晶振的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。
KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振
FNSTB1027
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
27MHz
±30ppm
-20°C ~ 70°C
FNSTB1027
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
27MHz
±30ppm
-20°C ~ 70°C
FNSTB1027
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
27MHz
±30ppm
-20°C ~ 70°C
FNSURV054
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
54MHz
±30ppm
-20°C ~ 70°C
FNSURV054
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
54MHz
±30ppm
-20°C ~ 70°C
FNSURV054
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
54MHz
±30ppm
-20°C ~ 70°C
FDSAS6062
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
62.5MHz
±50ppm
-20°C ~ 70°C
FDSAS6062
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
62.5MHz
±50ppm
-20°C ~ 70°C
FDSAS6062
Diodes Incorporated
SaRonix-eCera™ ASSP XO™
62.5MHz
±50ppm
-20°C ~ 70°C
FN5000121
Diodes Incorporated
SaRonix-eCera™ FN
50MHz
±50ppm
-20°C ~ 70°C
FN5000121
Diodes Incorporated
SaRonix-eCera™ FN
50MHz
±50ppm
-20°C ~ 70°C
FN5000121
Diodes Incorporated
SaRonix-eCera™ FN
50MHz
±50ppm
-20°C ~ 70°C
FD2450017
Diodes Incorporated
SaRonix-eCera™ FD
24.576MHz
±50ppm
-40°C ~ 85°C
FD2450017
Diodes Incorporated
SaRonix-eCera™ FD
24.576MHz
±50ppm
-40°C ~ 85°C
FD2450017
Diodes Incorporated
SaRonix-eCera™ FD
24.576MHz
±50ppm
-40°C ~ 85°C
FN2500140
Diodes Incorporated
SaRonix-eCera™ FN
25.000625MHz
±25ppm
-40°C ~ 85°C
FN2500140
Diodes Incorporated
SaRonix-eCera™ FN
25.000625MHz
±25ppm
-40°C ~ 85°C
FN2500140
Diodes Incorporated
SaRonix-eCera™ FN
25.000625MHz
±25ppm
-40°C ~ 85°C
FN4800068
Diodes Incorporated
SaRonix-eCera™ FN
48MHz
±50ppm
-20°C ~ 70°C
FN4800068
Diodes Incorporated
SaRonix-eCera™ FN
48MHz
±50ppm
-20°C ~ 70°C
FN4800068
Diodes Incorporated
SaRonix-eCera™ FN
48MHz
±50ppm
-20°C ~ 70°C
FN3330078
Diodes Incorporated
SaRonix-eCera™ FN
33.333MHz
±30ppm
-40°C ~ 85°C
FN3330078
Diodes Incorporated
SaRonix-eCera™ FN
33.333MHz
±30ppm
-40°C ~ 85°C
FN3330078
Diodes Incorporated
SaRonix-eCera™ FN
33.333MHz
±30ppm
-40°C ~ 85°C
FN0200045
Diodes Incorporated
SaRonix-eCera™ FN
2.048MHz
±50ppm
-20°C ~ 70°C
FN0200045
Diodes Incorporated
SaRonix-eCera™ FN
2.048MHz
±50ppm
-20°C ~ 70°C

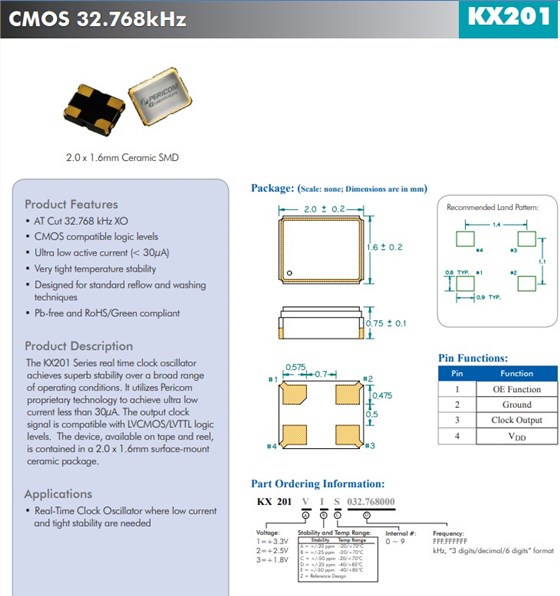

KX201系列實時時鐘晶體振蕩器在廣泛的工作條件下實現了卓越的穩定性。KX201系列1.8V/2.5V/3.3V, 小體積尺寸2.0x1.6mm, 32.768kHz CMOS晶體振蕩器。它利用Pericom 專有技術實現低于30μA的超低電流。輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用2.0x1.6mm表面貼裝陶瓷封裝。
特征：
AT Cut 32.768 kHz XO
CMOS兼容邏輯電平
超低有功電流（< 30μA）
非常嚴格的溫度穩定性
專為標準回流和清洗技術而設計
無鉛且符合 RoHS/Green 標準
應用：需要低電流和高度穩定性的實時時鐘振蕩器
KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振
| FN0200045 | Diodes Incorporated | SaRonix-eCera™ FN | 2.048MHz | ±50ppm | -20°C ~ 70°C |
| NX51500001 | Diodes Incorporated | SaRonix-eCera™ NX | 50MHz | ±25ppm | -40°C ~ 85°C |
| NX51500001 | Diodes Incorporated | SaRonix-eCera™ NX | 50MHz | ±25ppm | -40°C ~ 85°C |
| NX51500001 | Diodes Incorporated | SaRonix-eCera™ NX | 50MHz | ±25ppm | -40°C ~ 85°C |
| FK2400017 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm | -40°C ~ 85°C |
| FK2400017 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm | -40°C ~ 85°C |
| FK2400017 | Diodes Incorporated | SaRonix-eCera™ FK | 24MHz | ±25ppm | -40°C ~ 85°C |
| FK2450016 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm | -20°C ~ 70°C |
| FK2450016 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm | -20°C ~ 70°C |
| FK2450016 | Diodes Incorporated | SaRonix-eCera™ FK | 24.576MHz | ±25ppm | -20°C ~ 70°C |
| FK2500025 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm | -40°C ~ 85°C |
| FK2500025 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm | -40°C ~ 85°C |
| FK2500025 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±25ppm | -40°C ~ 85°C |
| FK2500067 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 105°C |
| FK2500067 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 105°C |
| FK2500067 | Diodes Incorporated | SaRonix-eCera™ FK | 25MHz | ±50ppm | -40°C ~ 105°C |
| FN5000138 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000138 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000138 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000145 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000145 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN5000145 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±50ppm | -40°C ~ 85°C |
| FN2500233Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN2500233Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN2500233Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
Product Parameters
| Output Logic | CMOS |
|---|---|
| Supply Voltage (V) | 1.8,2.5,3.3 |
| Package Size (mm) | 2.0 x 1.6 x 0.75 |
| PkgType | Ceramic Seam |
| Stability (PPM) | 20to50 |
| ProductSeries | KX201 |
| Freq Range (MHz) | 32.768KHZ |
| Jitter RMS (ps) | <1 PS |
| Pads | 4 |
| Family | kHz XO |
KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振
產品參數
輸出邏輯 CMOS電源電壓 1.8,2.5,3.3V
包裝尺寸2.0x1.6x0.75mm有源晶振
包裝類型 陶瓷縫
穩定性 20到50PPM
產品系列 KX201
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 PS
墊 4腳
家庭 kHz XO
| FN2500258Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN2500258Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN2500258Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN2500264Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN2500264Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN2500264Z | Diodes Incorporated | SaRonix-eCera™ FN | 25MHz | ±50ppm | -20°C ~ 70°C |
| FN5000109 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±25ppm | -20°C ~ 70°C |
| FN5000109 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±25ppm | -20°C ~ 70°C |
| FN5000109 | Diodes Incorporated | SaRonix-eCera™ FN | 50MHz | ±25ppm | -20°C ~ 70°C |
| FN1200041Z | Diodes Incorporated | SaRonix-eCera™ FN | 12MHz | ±50ppm | -40°C ~ 85°C |
| FN1200041Z | Diodes Incorporated | SaRonix-eCera™ FN | 12MHz | ±50ppm | -40°C ~ 85°C |
| FN1200041Z | Diodes Incorporated | SaRonix-eCera™ FN | 12MHz | ±50ppm | -40°C ~ 85°C |
| NX7125003Z | Diodes Incorporated | SaRonix-eCera™ NX | 25MHz | ±50ppm | -20°C ~ 70°C |
| NX7125003Z | Diodes Incorporated | SaRonix-eCera™ NX | 25MHz | ±50ppm | -20°C ~ 70°C |
| NX7125003Z | Diodes Incorporated | SaRonix-eCera™ NX | 25MHz | ±50ppm | -20°C ~ 70°C |
| FK1220016Z | Diodes Incorporated | SaRonix-eCera™ FK | 12.288MHz | ±50ppm | -40°C ~ 85°C |
| FK1220016Z | Diodes Incorporated | SaRonix-eCera™ FK | 12.288MHz | ±50ppm | -40°C ~ 85°C |
| FK1220016Z | Diodes Incorporated | SaRonix-eCera™ FK | 12.288MHz | ±50ppm | -40°C ~ 85°C |
| NX7011D0074.250000 | Diodes Incorporated | SaRonix-eCera™ NX | 74.25MHz | ±25ppm | -40°C ~ 85°C |
| NX7011D0074.250000 | Diodes Incorporated | SaRonix-eCera™ NX | 74.25MHz | ±25ppm | -40°C ~ 85°C |
| NX7011D0074.250000 | Diodes Incorporated | SaRonix-eCera™ NX | 74.25MHz | ±25ppm | -40°C ~ 85°C |
| FNDDR1133 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 133.33MHz | ±50ppm | -20°C ~ 70°C |
| FNDDR1133 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 133.33MHz | ±50ppm | -20°C ~ 70°C |
| FNDDR1133 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 133.33MHz | ±50ppm | -20°C ~ 70°C |
| FJ2500009 | Diodes Incorporated | SaRonix-eCera™ FJ | 25MHz | ±25ppm | -40°C ~ 85°C |
| FJ2500009 | Diodes Incorporated | SaRonix-eCera™ FJ | 25MHz | ±25ppm | -40°C ~ 85°C |
| FJ2500009 | Diodes Incorporated | SaRonix-eCera™ FJ | 25MHz | ±25ppm | -40°C ~ 85°C |
| NX7011D0074.175824 | Diodes Incorporated | SaRonix-eCera™ NX | 74.175824MHz | ±25ppm | -40°C ~ 85°C |
| NX7011D0074.175824 | Diodes Incorporated | SaRonix-eCera™ NX | 74.175824MHz | ±25ppm | -40°C ~ 85°C |
| NX7011D0074.175824 | Diodes Incorporated | SaRonix-eCera™ NX | 74.175824MHz | ±25ppm | -40°C ~ 85°C |
KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振
KX201 1.82.53.3 2.0x1.6x0.75 陶瓷縫 20~50 KX201 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS晶體振蕩器
KX251 1.82.53.3 2.5x2.0x0.9 陶瓷縫 20~50 KX251 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS晶體振蕩器
KX31Q 3.32.51.8 3.2x2.5 陶瓷縫 20~50 KXQ 32.768KHZ <1 4 1.8/2.5/3.3V、3.2x2.5mm、超低電流、32.768KHz、汽車級CMOS晶體振蕩器
KX321 1.82.53.3 3.2x2.5x1.0 陶瓷縫 20~50 KX321 32.768KHZ <1 4 1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS晶體振蕩器
KX501 1.82.53.3 5.0x3.2x1.2 陶瓷縫 20~50 KX501 32.768KHZ <1 4 1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS晶體振蕩器
