頻率：12.288MHz
尺寸：3.2x2.5x1.0mm
ABM8G-12.288MHZ-18-D2Y-T3,3225mm,Abracon通訊設備晶振，美國進口晶振，Abracon艾博康晶振，型號：ABM8G，編碼為：ABM8G-12.288MHZ-18-D2Y-T3，頻率：12.288MHz，工作溫度范圍：-40℃至+85℃，頻率穩定性：±30ppm，頻率容差：±20ppm，負載電容：18pF，是一款小體積晶振尺寸：3.2x2.5x1.0mm封裝，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，SMD石英晶體，無鉛環保晶振，具有超小型晶振，輕薄型晶振，高性能晶振，適用于：薄型設備，高密度應用，調制解調器，通信和測試設備，PMCIA，無線應用程序。
ABM8G-12.288MHZ-18-D2Y-T3,3225mm,Abracon通訊設備晶振，產品特點：
•高度低；適用于薄型設備
•玻璃密封包裝確保高可靠性和高溫操作
•具有緊密的公差和穩定性無源晶振
•支持IR回流
•ABM8晶體的低成本版本

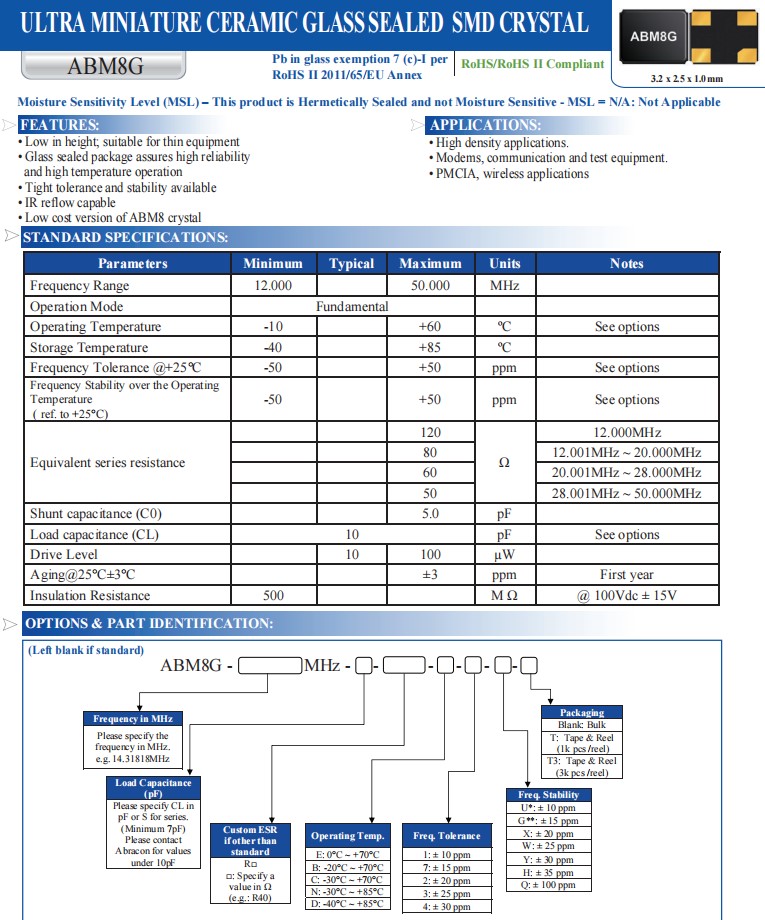

ABM8G-12.288MHZ-18-D2Y-T3,3225mm,Abracon通訊設備晶振,參數表
| ABM8G | Minimum | Typical | Maximum | Units | Notes |
| Frequency Range | 12.288 | MHz | |||
| Operation Mode | Fundamental | ||||
| Operating Temperature | -10 | 60 | ºC | See options | |
| Storage Temperature | -40 | 85 | ºC | ||
| Frequency Tolerance @+25°C | -50 | 50 | ppm | See options | |
| Frequency Stability over the Operating |
-50 | 50 | See options | ||
| Temperature | ppm | ||||
| ( ref. to +25°C) | |||||
| 120 | Ω | 12.000MHz | |||
| Equivalent series resistance | 80 | Ω | 12.001MHz ~ 20.000MHz | ||
| 60 | Ω | 20.001MHz ~ 28.000MHz | |||
| 50 | Ω | 28.001MHz ~ 50.000MHz | |||
| Shunt capacitance (C0) | 5 | pF | |||
| Load capacitance (CL) | 10 | pF | See options | ||
| Drive Level | 10 | 100 | µW | ||
| Aging@25°C±3°C | ±3 | ppm | First year | ||
| Insulation Resistance | 500 | M Ω | @ 100Vdc ± 15V | ||
ABM8G-12.288MHZ-18-D2Y-T3,3225mm,Abracon通訊設備晶振,尺寸圖
| 產品編碼 | 晶振廠家 | 型號 | 頻率 | 長度 | 寬度 | 高度 |
| ABM8G-106-12.000MHZ-T | Abracon晶振 | ABM8G | 12 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.000MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 12 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.000MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 12 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.000MHZ-18-D4W-T3 | Abracon晶振 | ABM8G | 12 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.000MHZ-4Y-T3 | Abracon晶振 | ABM8G | 12 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.000MHZ-8-B2X-T | Abracon晶振 | ABM8G | 12 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.000MHZ-B4Y-T | Abracon晶振 | ABM8G | 12 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.000MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 12 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.288MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 12.288 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.288MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 12.288 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.288MHZ-4Y-T3 | Abracon晶振 | ABM8G | 12.288 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.288MHZ-B4Y-T | Abracon晶振 | ABM8G | 12.288 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-12.288MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 12.288 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.000MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 13 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.000MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 13 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.000MHZ-4Y-T3 | Abracon晶振 | ABM8G | 13 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.000MHZ-B4Y-T | Abracon晶振 | ABM8G | 13 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.000MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 13 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.560MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 13.56 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.560MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 13.56 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.560MHZ-4Y-T3 | Abracon晶振 | ABM8G | 13.56 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.560MHZ-B4Y-T | Abracon晶振 | ABM8G | 13.56 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-13.560MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 13.56 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.31818MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 14.31818 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.31818MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 14.31818 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.31818MHZ-4Y-T3 | Abracon晶振 | ABM8G | 14.31818 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.31818MHZ-B4Y-T | 3225晶振 | ABM8G | 14.31818 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.31818MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 14.31818 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.31818MHZ-D2Y-T | Abracon晶振 | ABM8G | 14.31818 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.7456MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 14.7456 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.7456MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 14.7456 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.7456MHZ-4Y-T3 | Abracon晶振 | ABM8G | 14.7456 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.7456MHZ-B4Y-T | Abracon晶振 | ABM8G | 14.7456 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-14.7456MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 14.7456 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.000MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 16 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.000MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 16 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.000MHZ-4Y-T3 | Abracon晶振 | ABM8G | 16 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.000MHZ-8-D2Y-T | Abracon晶振 | ABM8G | 16 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.000MHZ-B4Y-T | Abracon晶振 | ABM8G | 16 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.000MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 16 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.384MHZ-12-B4Y-T | Abracon晶振 | ABM8G | 16.384 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.384MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 16.384 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.384MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 16.384 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.384MHZ-4Y-T3 | Abracon晶振 | ABM8G | 16.384 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.384MHZ-B4Y-T | Abracon晶振 | ABM8G | 16.384 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-16.384MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 16.384 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-18.432MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 18.432 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-18.432MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 18.432 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-18.432MHZ-4Y-T3 | Abracon晶振 | ABM8G | 18.432 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-18.432MHZ-B4Y-T | Abracon晶振 | ABM8G | 18.432 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-18.432MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 18.432 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-19.6608MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 19.6608 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-19.6608MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 19.6608 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-19.6608MHZ-4Y-T3 | Abracon晶振 | ABM8G | 19.6608 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-19.6608MHZ-B4Y-T | Abracon晶振 | ABM8G | 19.6608 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-19.6608MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 19.6608 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-20.000MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 20 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-20.000MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 20 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-20.000MHZ-4Y-T3 | Abracon晶振 | ABM8G | 20 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-20.000MHZ-B4Y-T | Abracon晶振 | ABM8G | 20 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-20.000MHZ-B4Y-T3 | Abracon晶振 | ABM8G | 20 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-22.1184MHZ-18-D2Y-T | Abracon晶振 | ABM8G | 22.1184 MHz | 3.2mm | 2.5mm | 1mm |
| ABM8G-22.1184MHZ-18-D2Y-T3 | Abracon晶振 | ABM8G | 22.1184 MHz | 3.2mm | 2.5mm | 1mm |
