RMS抖動的差分振蕩器ECX2-LMV-3CN-156.250-TR為測試測量打開新通道，ECS晶振公司作為一家在頻率元器件行業有著十分豐富經驗的制造商，十分擅長于開發有源晶振產品,在開發方面的技術實屬無人可及,精湛的工藝，高超的技術，一一為ECS公司增添輝煌的一筆，作為一家遍布全球的跨國公司，為了將公司發展成為一個多樣化和包容性的全球供應鏈。我們相信多樣性激發創新，并允許供應商開發更多創新產品和解決方案服務我們的業務需求。

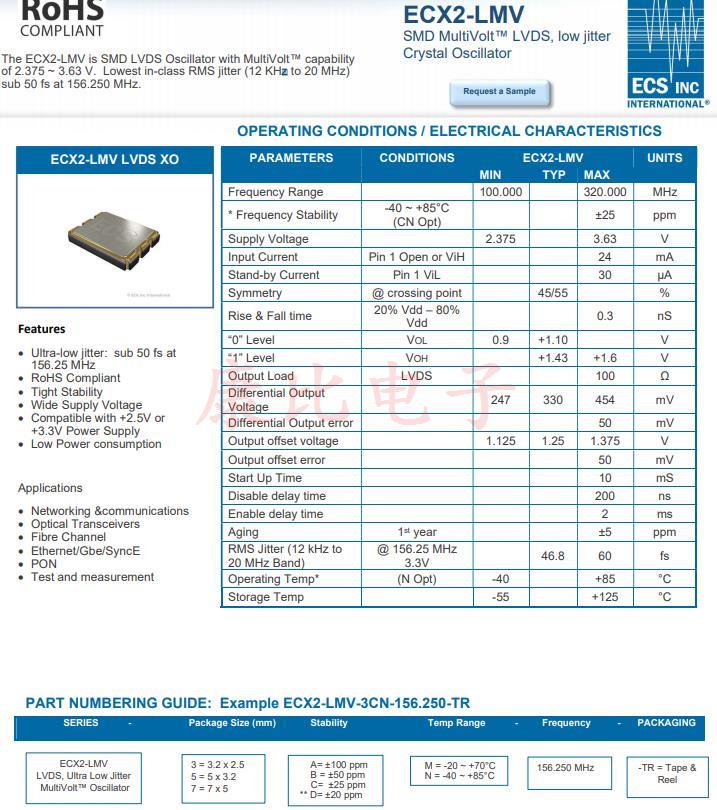

The ECX2-LMV series low jitter MultiVolt oscillators with LVDS outputs are available in a 3.2 mm x 2.5 mm x 0.9 mm (LWH) package size. These feature low power consumption of 24 mA (max.) with best in class integrated RMS phase jitter (12 kHz ~ 20 MHz) sub 50 fs at 156.250 MHz. The ECX2-LMV operates over 2.375 V to 3.63 V with a stability of ±25 ppm over the operating temperature range of -40°C ~ +85°C.
RMS抖動的差分振蕩器ECX2-LMV-3CN-156.250-TR為測試測量打開新通道，ECX2-LMV系列低抖動多伏振蕩器，OSC振蕩器，帶LVDS輸出，封裝尺寸為3.2 mm x 2.5 mm x 0.9 mm (LWH)。這些功能具有24 mA(最大)的低功耗，在156.250 MHz時具有最佳的集成RMS相位抖動(12 kHz ~ 20 MHz) sub 50 fs。ECX2-LMV工作在2.375 V至3.63 V之間，在-40°C ~ +85°C的工作溫度范圍內，穩定性為±25 ppm。
|
|
Part Number | Frequency |
Frequency Stability |
Operating Temperature |
Datasheet |
Check Inventory |
|---|---|---|---|---|---|---|
|
|
ECX2-LMV-3CN-100.000-TR | 100 MHz | ±25 PPM | -40°C ~ +85°C |
|
|
|
|
ECX2-LMV-3CN-156.250-TR | 156.250 MHz | ±25 PPM | -40°C ~ +85°C |
|
|
|
|
ECX2-LMV-3CN-125.000-TR | 125 MHz | ±25 PPM | -40°C ~ +85°C |
|
|
| Manufacturer Part Number原廠代碼 | Manufacturer品牌 | Series型號 | Frequency 頻率 | Operating Temperature 工作溫度 |
| ECS-2033-320-AU | ECS晶振 | ECS-2033 | 32MHz | -55°C ~ 125°C |
| ECS-3951M-160-B-TR | ECS晶振 | ECS-3951M | 16MHz | -10°C ~ 70°C |
| ECS-3951M-160-B-TR | ECS晶振 | ECS-3951M | 16MHz | -10°C ~ 70°C |
| ECS-3951M-160-B-TR | ECS晶振 | ECS-3951M | 16MHz | -10°C ~ 70°C |
| ECS-3951C-160-TR | ECS晶振 | ECS-3951C | 16MHz | 0°C ~ 70°C |
| ECS-3951C-160-TR | ECS有源晶振 | ECS-3951C | 16MHz | 0°C ~ 70°C |
| ECS-3951C-160-TR | ECS晶振 | ECS-3951C | 16MHz | 0°C ~ 70°C |
| ECS-3951C-400-TR | ECS晶振 | ECS-3951C | 40MHz | 0°C ~ 70°C |
| ECS-3951C-400-TR | ECS晶振 | ECS-3951C | 40MHz | 0°C ~ 70°C |
| ECS-3951C-400-TR | ECS晶振 | ECS-3951C | 40MHz | 0°C ~ 70°C |
| ECS-3951C-330-TR | ECS晶振 | ECS-3951C | 33MHz | 0°C ~ 70°C |
| ECS-3951C-330-TR | ECS晶振 | ECS-3951C | 33MHz | 0°C ~ 70°C |
| ECS-3951C-330-TR | ECS晶振 | ECS-3951C | 33MHz | 0°C ~ 70°C |
| ECS-3953C-500-TR | ECS晶振 | ECS-3953C | 50MHz | 0°C ~ 70°C |
| ECS-3953C-500-TR | ECS晶振 | ECS-3953C | 50MHz | 0°C ~ 70°C |
| ECS-3953C-500-TR | ECS晶振 | ECS-3953C | 50MHz | 0°C ~ 70°C |
| ECS-3951M-018-B-TR | ECS晶振 | ECS-3951M | 1.8432MHz | -10°C ~ 70°C |
| ECS-3951M-018-B-TR | ECS晶振 | ECS-3951M | 1.8432MHz | -10°C ~ 70°C |
| ECS-3951M-018-B-TR | ECS晶振 | ECS-3951M | 1.8432MHz | -10°C ~ 70°C |
| ECS-3951C-018-TR | ECS晶振 | ECS-3951C | 1.8432MHz | 0°C ~ 70°C |
| ECS-3951C-018-TR | ECS晶振 | ECS-3951C | 1.8432MHz | 0°C ~ 70°C |
| ECS-3951C-018-TR | ECS晶振 | ECS-3951C | 1.8432MHz | 0°C ~ 70°C |
| ECS-3951C-200-TR | ECS晶振 | ECS-3951C | 20MHz | 0°C ~ 70°C |
| ECS-3951C-200-TR | ECS晶振 | ECS-3951C | 20MHz | 0°C ~ 70°C |
應用領域：SONET / SDH，光纖通道，千兆以太網，存儲區域網絡，寬帶接入，FPGA或DSP，測試和測量.
