當前位置：首頁 » 歐美進口晶振 » Skyworks晶振 » Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振

$Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振$

prevnext

Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振

頻率：100MHZ

尺寸：7.0×5.0mm

Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振，尺寸7.0×5.0mm，頻率100MHZ，電壓2.5V ，輸出邏輯LVDS，LVDS輸出晶振，貼片差分振蕩器，LVDS差分晶體振蕩器，7050mm差分晶振，差分壓控晶振，壓控晶體振蕩器，100MHZ差分振蕩器，低電壓差分晶振，低抖動差分晶振，低損耗差分振蕩器，低相位差分晶振，低相噪差分晶振，低功耗差分振蕩器，高品質差分晶振，高性能差分振蕩器，光模塊差分晶振，通訊模塊差分振蕩器，儀器儀表專用差分晶振，測試測量差分晶振，具有低相位低抖動的特點。

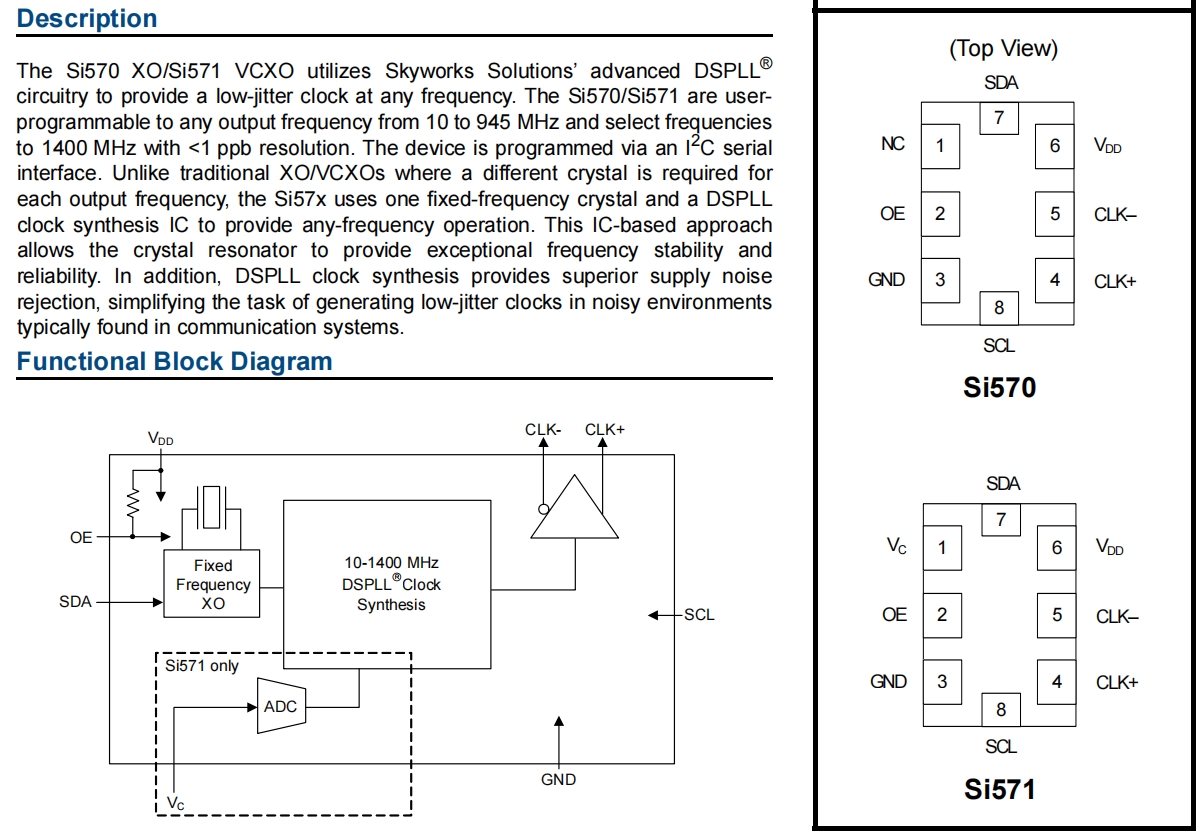

Si570 XO/Si571 VCXO振蕩器采用Skyworks Solutions的先進DSPLL®電路，以提供任何頻率的低抖動時鐘Si570/Si571可由用戶編程為10至945MHz的任何輸出頻率，并可選擇頻率至1400MHz，分辨率<1 ppb。該設備通過I2C串行進行編程界面與傳統XO/VCXO不同，傳統XO/VXO需要不同的晶體每個輸出頻率，Si57x使用一個固定頻率晶體和一個DSPLL時鐘合成IC，以提供任何頻率操作。Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振.

訂購熱線：0755-27876201

Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振 參數表

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Supply Voltage1

V DD

3.3 V option

2.97

3.3

3.63

2.5 V option

2.25

2.5

2.75

1.8 V option

1.71

1.8

1.89

Supply Current

IDD

Output enabled
LVPECL
CML
LVDS
CMOS

120
108
99
90

130
117
108
98

TriState mode

Output Enable (OE)2 ,
Serial Data (SDA),
Serial Clock (SCL)

VIH

0.75 x V DD

VIL

0.5

Operating Temperature Range

–40

ºC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Control Voltage Tuning Slope1,2,3

VC10 to 90% of V DD

—

33
45
90
135
180
356

—

ppm/V

Control Voltage Linearity4

LVC

BSL

–5

±1

Incremental

–10

±5

+10

Modulation Bandwidth

9.3

10.0

10.7

kHz

VC Input Impedance

Z VC

500

kΩ

Nominal Control Voltage5

VCNOM

@ fO

V DD/2

Control Voltage Tuning Range

V DD

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Programmable Frequency
Range1,2

LVPECL/LVDS/CML

—

1417.5

MHz

CMOS

—

160

Temperature Stability1,3

TA = –40 to +85 ºC

–7
–20
–50
–100

—
—
—
—

7
+20
+50
+100

ppm

Initial Accuracy

—

1.5

—

ppm

Aging

Frequency drift over first year

—

±3

ppm

Frequency drift over 20-year life

—

±10

ppm

Total Stability

Temp stability = ±7 ppm

±20

ppm

Temp stability = ±20 ppm

±31.5

ppm

Temp stability = ±50 ppm

—

±61.5

ppm

Absolute Pull Range1,3

APR

±12

—

±375

ppm

Power up Time4

tOSC

—

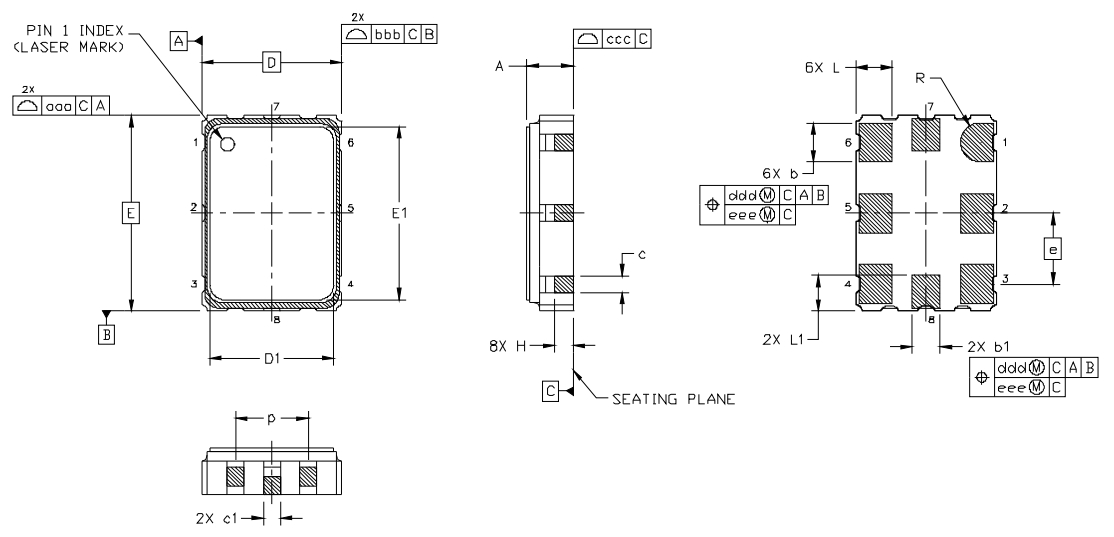

Si570差分晶體\570FAC001059DGR\6G模塊晶振\Skyworks低電壓晶振 尺寸圖

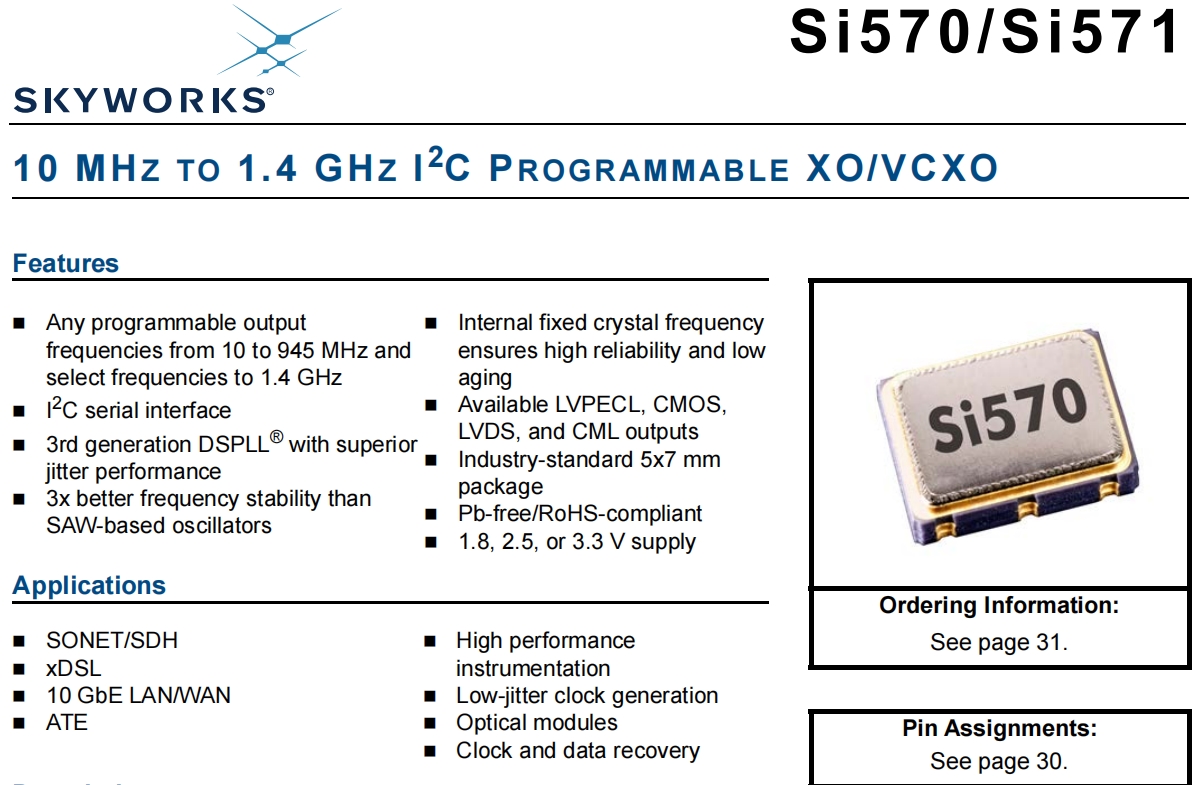

壓控晶體振蕩器產品特征:

任何可編程輸出頻率為10至945MHz

選擇頻率至1.4GHz

2C串行接口

具有卓越性能的第三代DSPLL®抖動性能

頻率穩定性比SAW振蕩器

內部固定晶體頻率

確保高可靠性和低成本變老

可用LVPECL、CMOS、LVDS和CML輸出

行業標準5x7mm包裹

無鉛/符合RoHS

1.8、2.5或3.3 V電源
