作為目前行業中高要求,高技術石英晶體振蕩器,具有低相位,低抖動,低功耗,低損耗,低電平的特點.差分晶體振蕩器使用于產品中能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的.
愛普生晶振SG5032EAN是一款LV-PECL輸出差分晶振，小體積晶振尺寸5.0x3.2mm晶體振蕩器，六腳貼片晶振，有源晶振，電源電壓2.5V至3.3V，寬頻率范圍73.5MHz至700MHz任意一頻點具有低電源電壓，滿足產品低消耗電流的特點。SG5032EAN有源晶振具有超小型，輕薄型，低抖動，低功耗晶振，低耗能，低損耗，低電源電壓，低電平，低相位噪聲等特點。廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信，10G以太網及各種頻率控制設備上。
lora模塊低功耗晶振SG5032EAN差分晶振X1G004271010900
                                     產品編碼
|
      型號
|
      頻率
|
      貼片晶振
|
      輸出波
|
      電源電壓
|
   工作溫度
|
| X1G004271000100 | SG5032EAN | 125.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271000400 | SG5032EAN | 100.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271001200 | SG5032EAN | 150.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271001300 | SG5032EAN | 155.520000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271001400 | SG5032EAN | 156.250000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271002000 | SG5032EAN | 125.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271003300 | SG5032EAN | 156.250000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271010900 | SG5032EAN | 250.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271011600 | SG5032EAN | 133.330000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271011700 | SG5032EAN | 133.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271011800 | SG5032EAN | 133.333000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271011900 | SG5032EAN | 174.703125MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -20 to 70 °C |
| X1G004271012100 | SG5032EAN | 161.132813MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271012200 | SG5032EAN | 425.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
| X1G004271012300 | SG5032EAN | 500.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250 to 3.630 V | -40 to 85 °C |
lora模塊低功耗晶振SG5032EAN差分晶振X1G004271010900

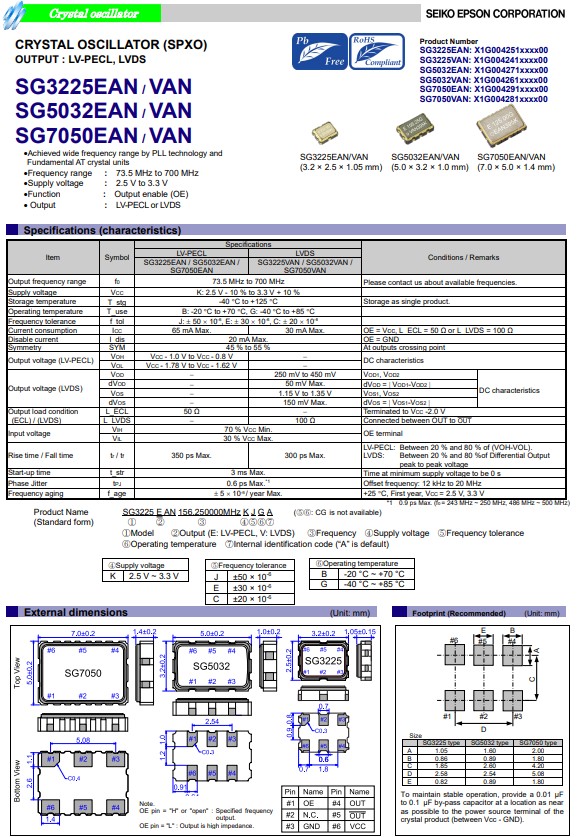

差分晶振常見的是3225晶振,5032晶振,7050晶振三種封裝尺寸,文中所列舉的是愛普生5032體積的部分差分晶體振蕩器編碼.均為較高的頻率點,為輸出LV-PECL方式,電源電壓范圍2.5V/3.3V,振蕩啟動時間在電源電壓最低時,所需時間為0秒.愛普生差分晶振具有性能強,精密穩定,低電壓的特征,普遍用于對于高速網絡要求的應用.
