頻率：32MHZ
尺寸：6.0x3.5mm
美國NEL晶體,6035mm,NFX-32.000-B-A-A-B-16,32MHZ水晶振動子,耐爾進口晶振,石英貼片晶振,四腳無源晶振,SMD石英晶體,石英振動子,貼片無源晶振,32MHZ無源晶振,6035mm輕薄晶振,NFX-32.000-B-A-A-B-16晶振,尺寸6.0x3.5mm,頻率32MHZ,高精度晶振,高性能晶振,低損耗晶振,低老化晶振,尋呼機晶振,蜂窩電話晶振,移動設備晶振,娛樂設備晶振,照相機晶振.
美國NEL晶體,6035mm,NFX-32.000-B-A-A-B-16,32MHZ水晶振動子特點:
符合NEL晶振的要求產品可靠性
用戶指定的公差可獲得的
無引線陶瓷封裝,適用于回流焊
寬頻率范圍8.0MHz至80.0MHz自動安裝
抗沖擊性：跌落試驗在2mm不銹鋼上3次75厘米高的板
接縫密封

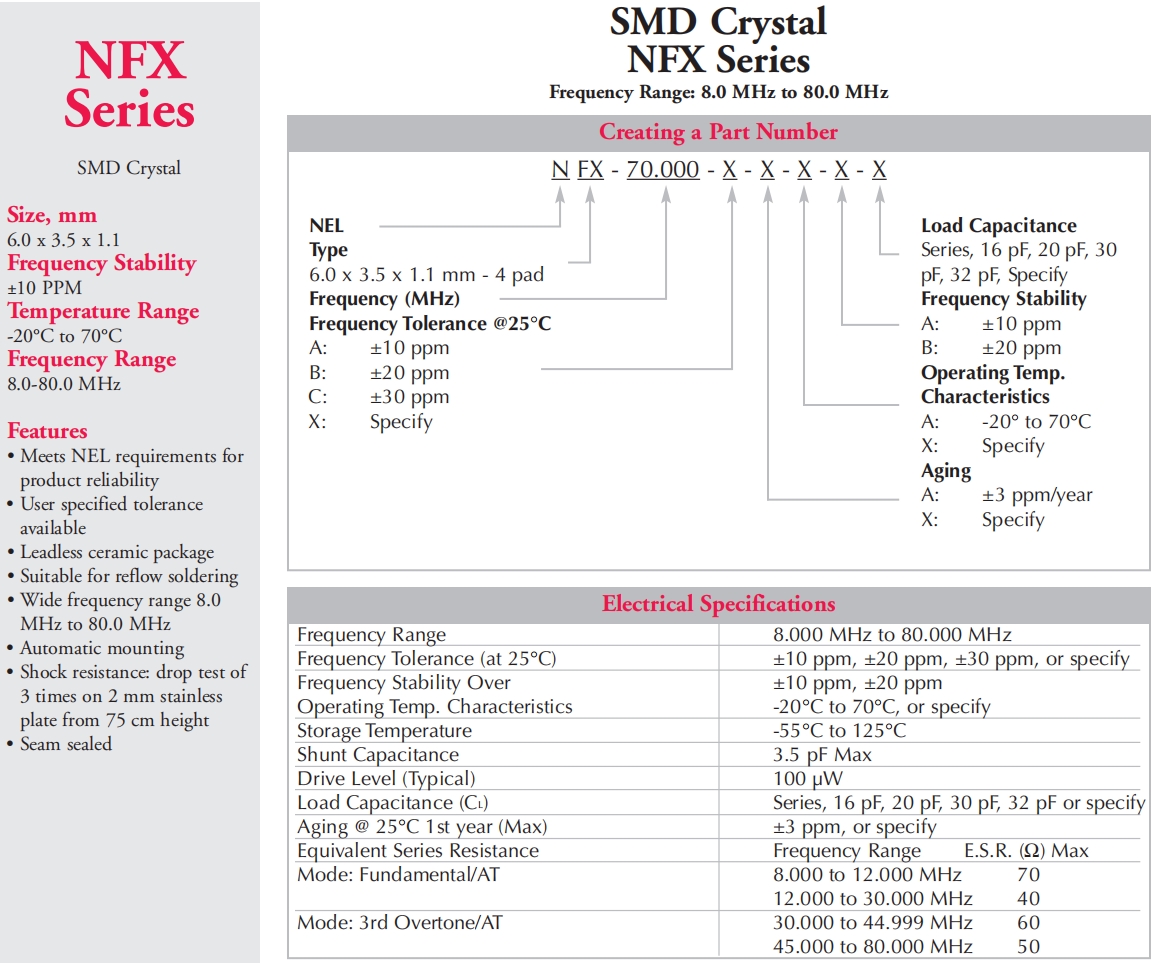

美國NEL晶體,6035mm,NFX-32.000-B-A-A-B-16,32MHZ水晶振動子 參數表
| Electrical Specifications | |||||||
| Frequency Range | 32.000 MHz | ||||||
| Frequency Tolerance (at 25°C) | ±10 ppm, ±20 ppm, ±30 ppm, or specify | ||||||
|
Frequency Stability Over Operating Temp. Characteristics |
±10 ppm, ±20 ppm -20°C to 70°C, or specify |
||||||
| Storage Temperature | -55°C to 125°C | ||||||
| Shunt Capacitance | 3.5 pF Max | ||||||
| Drive Level (Typical) | 100 µW | ||||||
| Load Capacitance (CL) | Series, 16 pF, 20 pF, 30 pF, 32 pF or specify | ||||||
| Aging @ 25°C 1st year (Max) | ±3 ppm, or specify | ||||||
| Equivalent Series Resistance | Frequency Range E.S.R. (Ω) Max | ||||||
| Mode: Fundamental/AT |
8.000 to 12.000 MHz 70 12.000 to 30.000 MHz 40 |
||||||
| Mode: 3rd Overtone/AT |
30.000 to 44.999 MHz 60 45.000 to 80.000 MHz 50 |
||||||
美國NEL晶體,6035mm,NFX-32.000-B-A-A-B-16,32MHZ水晶振動子 尺寸圖
