7050差分晶體振蕩器X1G005331001500專用于5G通訊設備

來源：*** 查看手機網址

掃一掃!

7050差分晶體振蕩器X1G005331001500專用于5G通訊設備

掃一掃!

瀏覽：- 發布日期：2022-09-24 16:19:50【大中小】

分享到：

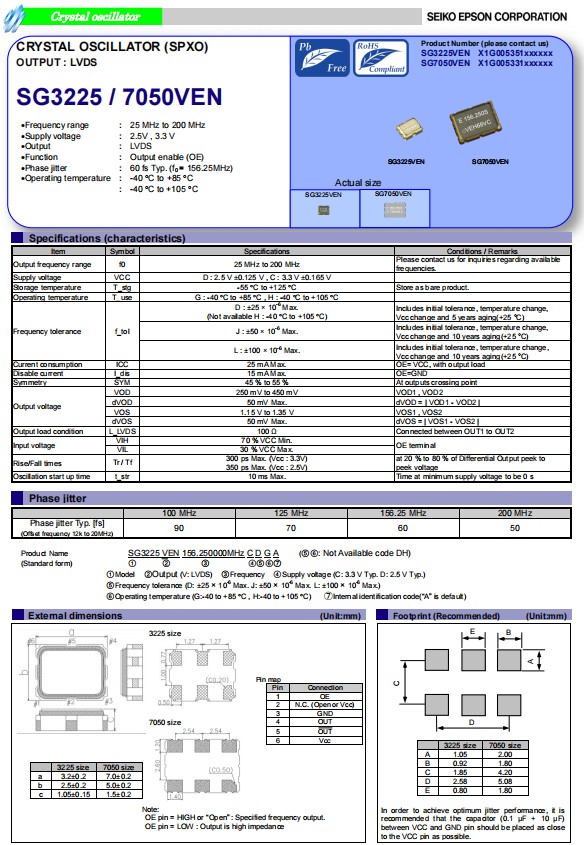

日本愛普生晶振型號SG7050VEN，是一款LVDS輸出差分晶體振蕩器，六腳貼片晶振，電源電壓2.5V,3.3V，寬頻率范圍25MHz至200MHz。愛普生每一款晶振都有自己的身份編碼，其中愛普生的一款額定頻率125.000000MHz的石英晶體振蕩器，7050封裝差分晶振，編碼為X1G005331001500，具有小尺寸，高穩定性，低抖動，低相位噪聲，低功耗，低損耗，低耗能等特點，是愛普生差分晶振中的熱銷型號之一，可以在-40℃至+85℃的溫度內穩定工作，頻率公差為+/-50ppm。SG7050VEN貼片晶振被廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信，10G以太網及各種頻率控制設備上。

7050差分晶體振蕩器X1G005331001500專用于5G通訊設備

產品編碼	型號	頻率	有源晶振	輸出波	電源電壓	工作溫度
X1G005331000100	SG7050VEN	100.000000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331000200	SG7050VEN	125.000000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331000300	SG7050VEN	156.250000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331000500	SG7050VEN	156.250000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331000600	SG7050VEN	27.000000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331000700	SG7050VEN	50.000000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331000800	SG7050VEN	50.001000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331000900	SG7050VEN	156.254000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331001000	SG7050VEN	156.253906MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331001100	SG7050VEN	125.003125MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331001200	SG7050VEN	156.250000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005331001300	SG7050VEN	130.000000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331001400	SG7050VEN	80.000000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C

X1G005331001500	SG7050VEN	125.000000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331001600	SG7050VEN	60.000000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005331100100	SG7050VEN	100.000000MHz	7.00x5.00x1.70mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005331100200	SG7050VEN	125.000000MHz	7.00x5.00x1.70mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005331100300	SG7050VEN	156.250000MHz	7.00x5.00x1.70mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005331100400	SG7050VEN	50.000000MHz	7.00x5.00x1.70mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005331100500	SG7050VEN	114.426000MHz	7.00x5.00x1.70mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G005331100600	SG7050VEN	156.250000MHz	7.00x5.00x1.70mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005331100700	SG7050VEN	50.000000MHz	7.00x5.00x1.70mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005561000200	SG7050VEN	312.500000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005561000300	SG7050VEN	250.000000MHz	7.00x5.00x1.70mm	LVDS	3.135 to 3.465 V	-40 to 85 °C

7050差分晶體振蕩器X1G005331001500專用于5G通訊設備

差分晶振是普通貼片晶振所不能夠達到的,差分晶振具有低電平,低抖動,低功耗等特性.差分晶振作為目前行業中高要求,高技術石英晶體振蕩器,具有相位低,損耗低的特點,愛普生差分晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理雙級信號,對外部電磁干擾(EMI)是高度免疫的,差分石英晶振滿足市場需求,實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性。
