差分晶體振蕩器(DXO)是目前行業中公認高技術，高要求的一款晶體振蕩器，是指輸出差分信號使用2種相位彼此完全相反的信號,從而消除了共模噪聲,并產生一個更高性能的系統。差分晶振一般為六腳貼片，輸出類型分為好幾種,LVDS,LV-PECL，具有低電平,低抖動，低功耗等特性。

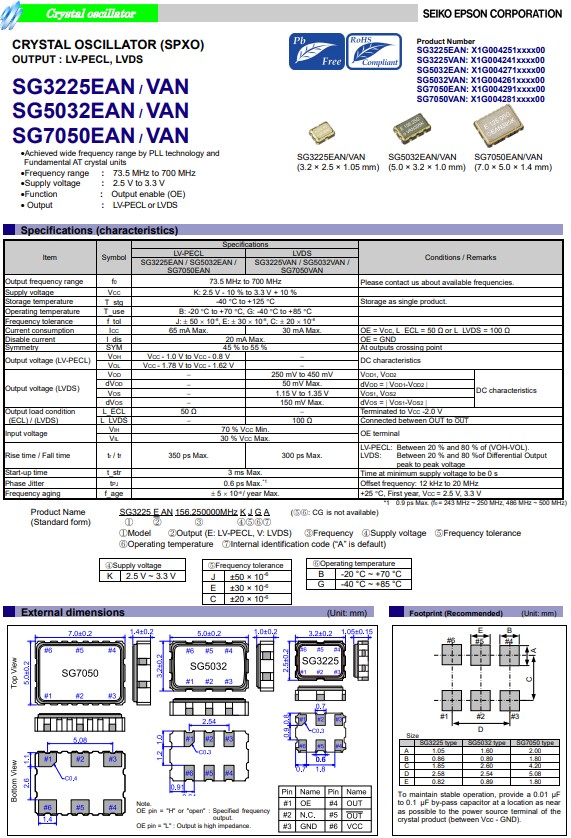

日本進口愛普生晶振SG3225VEN，是一款LVDS輸出晶振，小體積晶振尺寸3.2x2.5mm有源晶振，六腳貼片晶振，石英晶體振蕩器，電源電壓2.5V,3.3V，寬頻率范圍73.5MHz至700MHz任意一頻點,具有低電源電壓,滿足產品低消耗電流的特點，具有超小型，輕薄型，低抖動，低功耗，低損耗，低耗能等特點，被廣泛用于通訊設備,機頂盒,光端機,安防設備及各種頻率控制設備上。
LVDS輸出晶振X1G005351001200具有低抖動低耗能特點,差分晶體振蕩器
Product Number
Model
Frequency
愛普生晶振
Output Wave
Supply Voltage
X1G005351000100
SG3225VEN
72.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.375 to 2.625 V
X1G005351000200
SG3225VEN
125.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351000300
SG3225VEN
156.250000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
2.375 to 2.625 V
X1G005351000700
SG3225VEN
156.250000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351000800
SG3225VEN
156.250000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351001100
SG3225VEN
100.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351001200
SG3225VEN
125.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351001900
SG3225VEN
100.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351002000
SG3225VEN
100.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351002100
SG3225VEN
148.351640 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351002200
SG3225VEN
148.500000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351002300
SG3225VEN
200.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351002400
SG3225VEN
74.250000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351002600
SG3225VEN
30.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351002700
SG3225VEN
36.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351002800
SG3225VEN
42.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351002900
SG3225VEN
48.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351003000
SG3225VEN
54.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351003100
SG3225VEN
60.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351003200
SG3225VEN
70.656000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
X1G005351003300
SG3225VEN
150.000000 MHz
3.20 x 2.50 x 1.20 mm
LVDS
3.135 to 3.465 V
| X1G005351003400 | SG3225VEN | 182.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351003600 | SG3225VEN | 156.250000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351003700 | SG3225VEN | 200.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351004100 | SG3225VEN | 135.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351004200 | SG3225VEN | 200.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351004400 | SG3225VEN | 25.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351004500 | SG3225VEN | 27.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351004600 | SG3225VEN | 160.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351004700 | SG3225VEN | 200.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351004800 | SG3225VEN | 156.253906 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351004900 | SG3225VEN | 48.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351005100 | SG3225VEN | 125.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351005200 | SG3225VEN | 150.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351005400 | SG3225VEN | 130.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351005500 | SG3225VEN | 70.656000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351005600 | SG3225VEN | 25.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351006100 | SG3225VEN | 50.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351006200 | SG3225VEN | 50.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351006500 | SG3225VEN | 135.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351006900 | SG3225VEN | 161.132812 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
| X1G005351007100 | SG3225VEN | 60.000000 MHz | 3.20 x 2.50 x 1.20 mm | LVDS | 3.135 to 3.465 V |
差分晶振是指能夠輸出差分信號的晶振,輸出差分信號使用2種相位彼此完全相反的信號，從而消除了共模噪聲,并產生一個更高性能的系統
日本愛普生LVDS晶振也就是我們所說的EPSON差分晶振,具有多種輸出功能，能夠輕易識別網絡信號以及精確的處理雙極信號.
差分石英晶體振蕩器使用于產品中能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的
