SG5032VAN差分晶振X1G004261011900為通訊模塊專用晶振

來源：*** 查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-09-09 15:45:19【大中小】

分享到：

差分晶振是指能夠輸出差分信號的晶振,輸出差分信號使用2種相位彼此完全相反的信號，從而消除了共模噪聲,并產生一個更高性能的系統

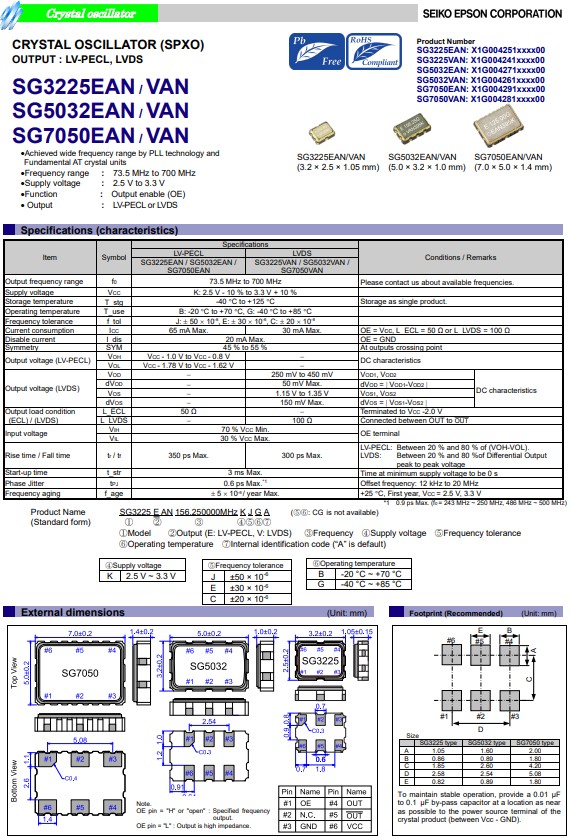

愛普生晶振SG5032VAN是一款LVDS輸出差分晶體振蕩器，是EPSON/愛普生的一款額定頻率73.5MHz至700MHz的石英晶體振蕩器，小體積尺寸5.0x3.2mm，六腳貼片晶振，有源晶振，電源電壓2.5V，3.3V，具有小體積輕薄型，低抖動，低功耗，低相位，低損耗，低耗能，低功耗，低電源電壓，高穩定性等特點。該款有源晶體振蕩器，可以在B:-20℃至+70℃/ G:-40℃至+85℃的溫度內穩定工作，它廣泛應用于汽車多媒體、車身電子、遙控器、太空設備、GPS，防盜防災裝置、安放監控等。

SG5032VAN差分晶振X1G004261011900為通訊模塊專用晶振

愛普生晶振	型號	頻率	尺寸	輸出波	電源電壓	工作溫度
X1G004261000100	SG5032VAN	100.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261000200	SG5032VAN	125.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261000500	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261000600	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261001100	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261001300	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261001400	SG5032VAN	155.520000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261002000	SG5032VAN	125.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261002100	SG5032VAN	125.006250MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261002300	SG5032VAN	100.000000MHz	5.00x3.20x1.20mm	LVDS輸出晶振	2.250 to 3.630 V	-40 to 85 °C
X1G004261002400	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261002500	SG5032VAN	400.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261002900	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261003100	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261003300	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261003400	SG5032VAN	312.500000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261004300	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004261006200	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004261006700	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-20 to 70 °C

X1G004261006900	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004261007100	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004261010200	SG5032VAN	250.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261010700	SG5032VAN	153.600000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261011400	SG5032VAN	78.125000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261011900	SG5032VAN	120.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261012100	SG5032VAN	644.531250MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261012500	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261012600	SG5032VAN	133.333300MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261012800	SG5032VAN	250.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261012900	SG5032VAN	135.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261013100	SG5032VAN	322.265625MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261013300	SG5032VAN	230.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261013500	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261013600	SG5032VAN	644.531250MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261013800	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G004261014100	SG5032VAN	161.132812MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G004261014300	SG5032VAN	625.000000MHz	5.00x3.20x1.20mm	LVDS	2.250 to 3.630 V	-40 to 85 °C

SG5032VAN差分晶振X1G004261011900為通訊模塊專用晶振

差分晶振一般為六腳貼片，工作溫度范圍-40℃~+85℃，差分晶振的頻率相對都比較高，比如從50MHz起可以做到700MHz或者更低和更高頻率，且任意頻率精確到個位小數點后六位。電源電壓能夠做到2.5V-3.3V之間。例如：2.25V、2.5V 、3.0V、3.3V、3.6V 可任意選擇應用。常見的封裝尺寸有7050(7.0x5.0mm)、5032(5.0x3.2mm)、3225(3.2x2.5mm)，更小封裝可達到2520(2.5x2.0mm)，常用的輸出方式主要有LVPECL和LVDS兩種。
