KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振

來源：*** 查看手機網址

掃一掃!

KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振

掃一掃!

瀏覽：- 發布日期：2022-07-08 10:36:59【大中小】

分享到：

我們的32.768kHz晶體振蕩器(XO)具有適用于各種應用的卓越性能。我們的產品包括世界上最小的32.768kHz晶體振蕩器 (XO)，尺寸僅為2.0x1.6mm（KM系列）。KM系列旨在應對小型化的挑戰，同時保持時序信號的卓越精度。我們還提供KX系列晶體振蕩器，它們是業界功耗最低（小于 10 µA）和最嚴格穩定性 (+/- 20 ppm) 的 32kHz XO。
由于許多低功耗和便攜式應用程序大部分時間都處于待機模式，因此這些系統必須最大限度地降低待機功耗。我們基于32.768k晶振的定時源允許這些系統快速轉換到待機模式（<10ms），以最大限度地延長電池壽命，而不會犧牲維持準確時鐘和日歷所需的穩定性（± 20ppm）。

KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振

FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSTB1027	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	27MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FNSURV054	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	54MHz	±30ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FDSAS6062	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	62.5MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FN5000121	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-20°C ~ 70°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FD2450017	Diodes Incorporated	SaRonix-eCera™ FD	24.576MHz	±50ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN2500140	Diodes Incorporated	SaRonix-eCera™ FN	25.000625MHz	±25ppm	-40°C ~ 85°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN4800068	Diodes Incorporated	SaRonix-eCera™ FN	48MHz	±50ppm	-20°C ~ 70°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN3330078	Diodes Incorporated	SaRonix-eCera™ FN	33.333MHz	±30ppm	-40°C ~ 85°C
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C
FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C

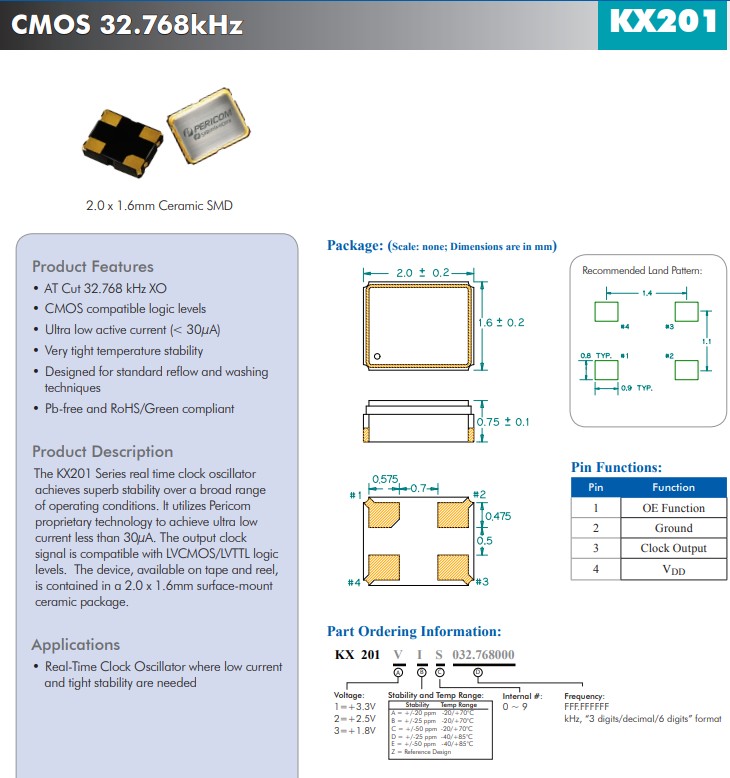

KX201系列實時時鐘晶體振蕩器在廣泛的工作條件下實現了卓越的穩定性。KX201系列1.8V/2.5V/3.3V, 小體積尺寸2.0x1.6mm, 32.768kHz CMOS晶體振蕩器。它利用Pericom 專有技術實現低于30μA的超低電流。輸出時鐘信號與LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，采用2.0x1.6mm表面貼裝陶瓷封裝。

特征：
AT Cut 32.768 kHz XO
CMOS兼容邏輯電平
超低有功電流（< 30μA）
非常嚴格的溫度穩定性
專為標準回流和清洗技術而設計
無鉛且符合 RoHS/Green 標準
應用：需要低電流和高度穩定性的實時時鐘振蕩器

KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振

FN0200045	Diodes Incorporated	SaRonix-eCera™ FN	2.048MHz	±50ppm	-20°C ~ 70°C
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm	-40°C ~ 85°C
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm	-40°C ~ 85°C
NX51500001	Diodes Incorporated	SaRonix-eCera™ NX	50MHz	±25ppm	-40°C ~ 85°C
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-40°C ~ 85°C
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-40°C ~ 85°C
FK2400017	Diodes Incorporated	SaRonix-eCera™ FK	24MHz	±25ppm	-40°C ~ 85°C
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2450016	Diodes Incorporated	SaRonix-eCera™ FK	24.576MHz	±25ppm	-20°C ~ 70°C
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-40°C ~ 85°C
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-40°C ~ 85°C
FK2500025	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±25ppm	-40°C ~ 85°C
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 105°C
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 105°C
FK2500067	Diodes Incorporated	SaRonix-eCera™ FK	25MHz	±50ppm	-40°C ~ 105°C
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000138	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN5000145	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±50ppm	-40°C ~ 85°C
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500233Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C

Product Parameters

Output Logic	CMOS
Supply Voltage (V)	1.8,2.5,3.3
Package Size (mm)	2.0 x 1.6 x 0.75
PkgType	Ceramic Seam
Stability (PPM)	20 to 50
ProductSeries	KX201
Freq Range (MHz)	32.768KHZ
Jitter RMS (ps)	<1 PS
Pads	4
Family	kHz XO

KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振

產品參數

輸出邏輯 CMOS
電源電壓 1.8,2.5,3.3V
包裝尺寸2.0x1.6x0.75mm有源晶振
包裝類型陶瓷縫
穩定性 20到50PPM
產品系列 KX201
頻率范圍 (MHz) 32.768KHZ
抖動均方根 (ps) <1 PS
墊 4腳
家庭 kHz XO

FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500258Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN2500264Z	Diodes Incorporated	SaRonix-eCera™ FN	25MHz	±50ppm	-20°C ~ 70°C
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm	-20°C ~ 70°C
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm	-20°C ~ 70°C
FN5000109	Diodes Incorporated	SaRonix-eCera™ FN	50MHz	±25ppm	-20°C ~ 70°C
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
FN1200041Z	Diodes Incorporated	SaRonix-eCera™ FN	12MHz	±50ppm	-40°C ~ 85°C
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm	-20°C ~ 70°C
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm	-20°C ~ 70°C
NX7125003Z	Diodes Incorporated	SaRonix-eCera™ NX	25MHz	±50ppm	-20°C ~ 70°C
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
FK1220016Z	Diodes Incorporated	SaRonix-eCera™ FK	12.288MHz	±50ppm	-40°C ~ 85°C
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.250000	Diodes Incorporated	SaRonix-eCera™ NX	74.25MHz	±25ppm	-40°C ~ 85°C
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm	-20°C ~ 70°C
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm	-20°C ~ 70°C
FNDDR1133	Diodes Incorporated	SaRonix-eCera™ ASSP XO™	133.33MHz	±50ppm	-20°C ~ 70°C
FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-40°C ~ 85°C
FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-40°C ~ 85°C
FJ2500009	Diodes Incorporated	SaRonix-eCera™ FJ	25MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.175824	Diodes Incorporated	SaRonix-eCera™ NX	74.175824MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.175824	Diodes Incorporated	SaRonix-eCera™ NX	74.175824MHz	±25ppm	-40°C ~ 85°C
NX7011D0074.175824	Diodes Incorporated	SaRonix-eCera™ NX	74.175824MHz	±25ppm	-40°C ~ 85°C

KX201系列CMOS晶體振蕩器,KX2013D0032.768000,時鐘晶體振蕩器,ECERA小體積晶振

KX201 1.82.53.3 2.0x1.6x0.75 陶瓷縫 20~50 KX201 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS晶體振蕩器
KX251 1.82.53.3 2.5x2.0x0.9 陶瓷縫 20~50 KX251 32.768KHZ <1 4 1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS晶體振蕩器
KX31Q 3.32.51.8 3.2x2.5 陶瓷縫 20~50 KXQ 32.768KHZ <1 4 1.8/2.5/3.3V、3.2x2.5mm、超低電流、32.768KHz、汽車級CMOS晶體振蕩器
KX321 1.82.53.3 3.2x2.5x1.0 陶瓷縫 20~50 KX321 32.768KHZ <1 4 1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS晶體振蕩器
KX501 1.82.53.3 5.0x3.2x1.2 陶瓷縫 20~50 KX501 32.768KHZ <1 4 1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS晶體振蕩器
