當前位置：首頁 » 日產進口晶振 » 愛普生晶振 » SG7050EBN電信晶振,EPSON差分振蕩器,X1G0045110601

prevnext

SG7050EBN電信晶振,EPSON差分振蕩器,X1G0045110601

頻率：156.25MHZ

尺寸：7.0×5.0mm

SG7050EBN電信晶振,EPSON差分振蕩器,X1G0045110601，尺寸7.0×5.0mm，頻率156.25MHZ，電壓2.375~2.625V，輸出邏輯LV-PECL，六腳差分晶振，差分晶體振蕩器，7050mm差分晶振，石英差分晶振，LV-PECL輸出晶振，差分貼片晶振，低電壓差分晶振，低抖動差分晶振，低相位差分晶振，低相噪差分晶振，高質量差分晶振，高品質差分晶振，電信差分晶振，無線路由器差分晶振，測試測量專用差分晶振，醫療設備差分晶振，衛星通信差分晶振，北斗導航差分晶振，具有低相位低相噪的特點。

OSC晶振產品可滿足不同應用的需求，尤其適合用于電信，無線路由器，測試測量，醫療設備，衛星通信，北斗導航等應用場景.SG7050EBN電信晶振,EPSON差分振蕩器,X1G0045110601.

訂購熱線：0755-27876201

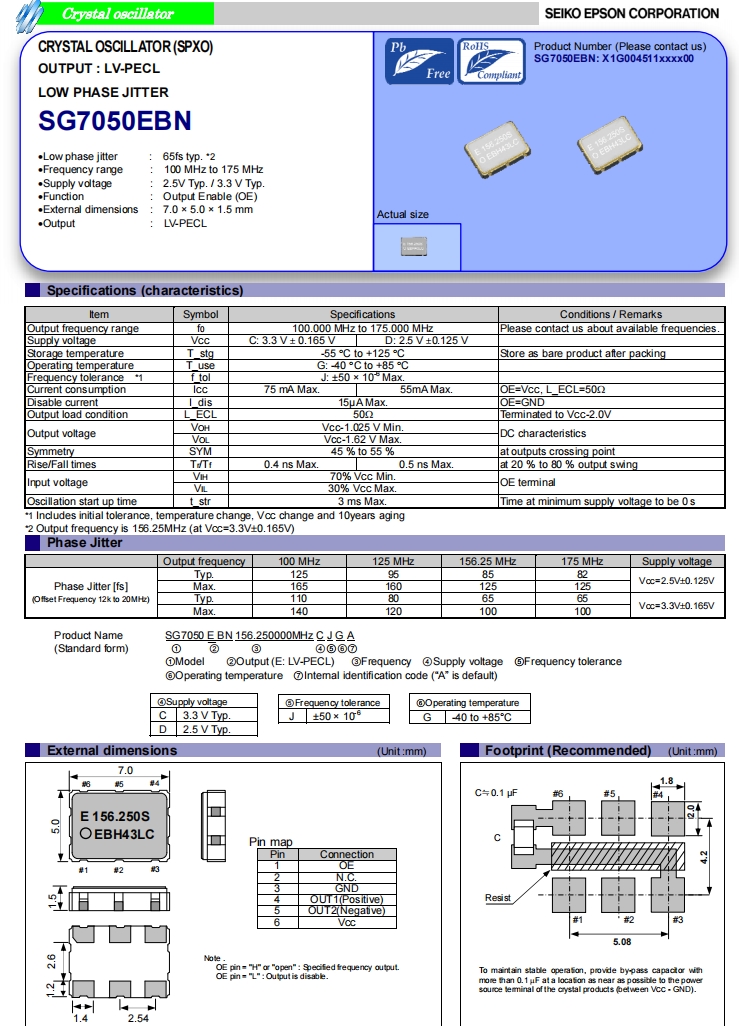

SG7050EBN電信晶振,EPSON差分振蕩器,X1G0045110601 參數表

Item

Symbol

Specifications

Conditions / Remarks

Output frequency range

156.250 MHz

Please contact us about available frequencies.

Supply voltage

VCC

C: 3.3 V 土 0.165 V

D: 2.5 V 土0.125 V

Storage temperature

T_stg

-55 °Cto +125 °C

Store as bare product after packing

Operating temperature

T_use

G: -40 °Cto +85 °C

Frequency tolerance *1

f_tol

J: ±50 × 10-6 Max.

Current consumption

ICC

75 mA Max.

55mA Max.

OE=VCC, L_ECL=50Ω

Disable current

I_dis

15μA Max.

OE=GND

Output load condition

L_ECL

50Ω

Terminated to VCC-2.0V

Output voltage

VOH

Vcc-1.025 V Min.

DC characteristics

VOL

Vcc-1.62 V Max.

Symmetry

SYM

45 % to 55 %

at outputs crossing point

Rise/Fall times

Tr/Tf

0.4 ns Max.

0.5 ns Max.

at 20 % to 80 % output swing

Input voltage

VIH

70% VCC Min.

OE terminal

VIL

30% VCC Max.

Oscillation start up time

t_str

3 ms Max.

Time at minimum supply voltage to be 0 s

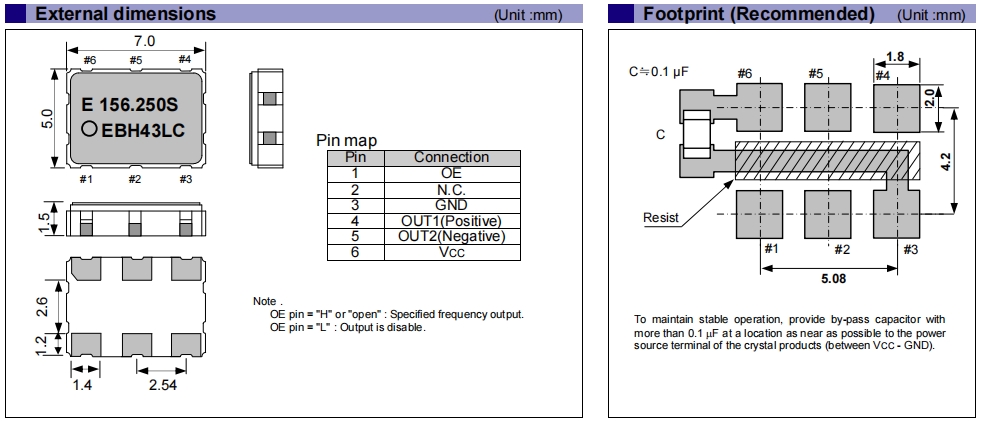

SG7050EBN電信晶振,EPSON差分振蕩器,X1G0045110601 尺寸圖

SG7050EBN電信晶振,EPSON差分振蕩器,X1G0045110601

差分晶振產品特性：

低相位抖動：典型65fs*2.

頻率范圍：100 MHz至175MHz

電源電壓：2.5V典型值/3.3 V類型。

功能：輸出啟用（OE）

外形尺寸：7.0×5.0×1.5mm

輸出：LV-PECL

編碼	進口晶振品牌	型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0023610004	愛普生晶振	SG-770SDD	155.520000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610007	愛普生晶振	SG-770SDD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610008	愛普生晶振	SG-770SDD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610012	愛普生晶振	SG-770SDD	125.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-20 to 70 °C
X1G0023610103	愛普生晶振	SG-770SDD	122.880000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0023610105	愛普生晶振	SG-770SDD	150.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0028210009	愛普生晶振	SG-771PCD	156.253906 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210010	愛普生晶振	SG-771PCD	156.258600 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-10 to 70 °C
X1G0028210107	愛普生晶振	SG-771PCD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210109	愛普生晶振	SG-771PCD	161.132800 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210115	愛普生晶振	SG-771PCD	106.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210116	愛普生晶振	SG-771PCD	133.000000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210117	愛普生晶振	SG-771PCD	133.333300 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210118	愛普生晶振	SG-771PCD	98.304000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0028210121	愛普生晶振	SG-771PCD	156.250000 MHz	7.00 x 5.00 x 1.80 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110001	愛普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110002	愛普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110003	愛普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110004	愛普生晶振	SG7050EBN	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110005	愛普生晶振	SG7050EBN	122.880000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110007	愛普生晶振	SG7050EBN	150.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110008	愛普生晶振	SG7050EBN	155.520000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110011	愛普生晶振	SG7050EBN	114.285000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110012	愛普生晶振	SG7050EBN	156.253906 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110601	愛普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110602	愛普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110603	愛普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0050110000	愛普生晶振	SG-8503CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110003	愛普生晶振	SG-8503CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110004	愛普生晶振	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110005	愛普生晶振	SG-8503CA	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050111001	愛普生晶振	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210000	愛普生晶振	SG-8504CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210003	愛普生晶振	SG-8504CA	75.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210004	愛普生晶振	SG-8504CA	62.500000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210005	愛普生晶振	SG-8504CA	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210006	愛普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210007	愛普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050211001	愛普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050310000	愛普生晶振	SG-8506CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050310003	愛普生晶振	SG-8506CA	622.080000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050311001	愛普生晶振	SG-8506CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1M0003010002	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010003	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010004	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010006	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010007	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010008	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010009	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010010	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010011	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010012	愛普生晶振	XG-2102CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010013	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010014	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010015	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010016	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010017	愛普生晶振	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010019	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010020	愛普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010021	愛普生晶振	XG-2102CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010022	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010023	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010025	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010026	愛普生晶振	XG-2102CA	245.760000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010027	愛普生晶振	XG-2102CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010029	愛普生晶振	XG-2102CA	156.257812 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010030	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010031	愛普生晶振	XG-2102CA	148.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010032	愛普生晶振	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010033	愛普生晶振	XG-2102CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010035	愛普生晶振	XG-2102CA	199.860000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010036	愛普生晶振	XG-2102CA	200.140000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010037	愛普生晶振	XG-2102CA	216.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010039	愛普生晶振	XG-2102CA	263.157900 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010040	愛普生晶振	XG-2102CA	622.080000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010041	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010042	愛普生晶振	XG-2102CA	103.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010043	愛普生晶振	XG-2102CA	105.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010044	愛普生晶振	XG-2102CA	161.132800 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010045	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010046	愛普生晶振	XG-2102CA	644.531250 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0003010047	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010048	愛普生晶振	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0003010049	愛普生晶振	XG-2102CA	156.255000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010050	愛普生晶振	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010051	愛普生晶振	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010052	愛普生晶振	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0003010053	愛普生晶振	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1G0058810001	愛普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810002	愛普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0058810003	愛普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0058810005	愛普生晶振	SG2520EGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LV-PECL	3.135 to 3.465 V	-40 to 105 °C
