當前位置：首頁 » 歐美進口晶振 » Quarztechnik晶振 » QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M

prevnext

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M

頻率：14.7456MHZ

尺寸：6.0x3.5mm

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M，尺寸6.0x3.5mm，頻率14.7456MHZ，Quarztechnik晶振，德國夸克晶振，德國無源晶振，6035mm石英晶振，輕薄型晶體，石英晶體，石英貼片晶振，石英水晶振子，無源石英晶振，無源晶振，無源貼片晶振，無源晶振，SMD晶振，低功耗晶振，低耗能晶振，高品質晶振，高性能晶振，無線應用晶振，汽車應用晶振，通信設備晶振，測試設備晶振，小型設備晶振，數字視頻晶振，高密度應用晶振，調制解調器專用晶振，具有高品質高性能的特點。

無源晶振產品主要應用于高密度應用，調制解調器、通信和測試設備，PMCIA，無線應用，汽車應用，小型設備，數字視頻等領域.QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M.

訂購熱線：0755-27876201

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M 參數表

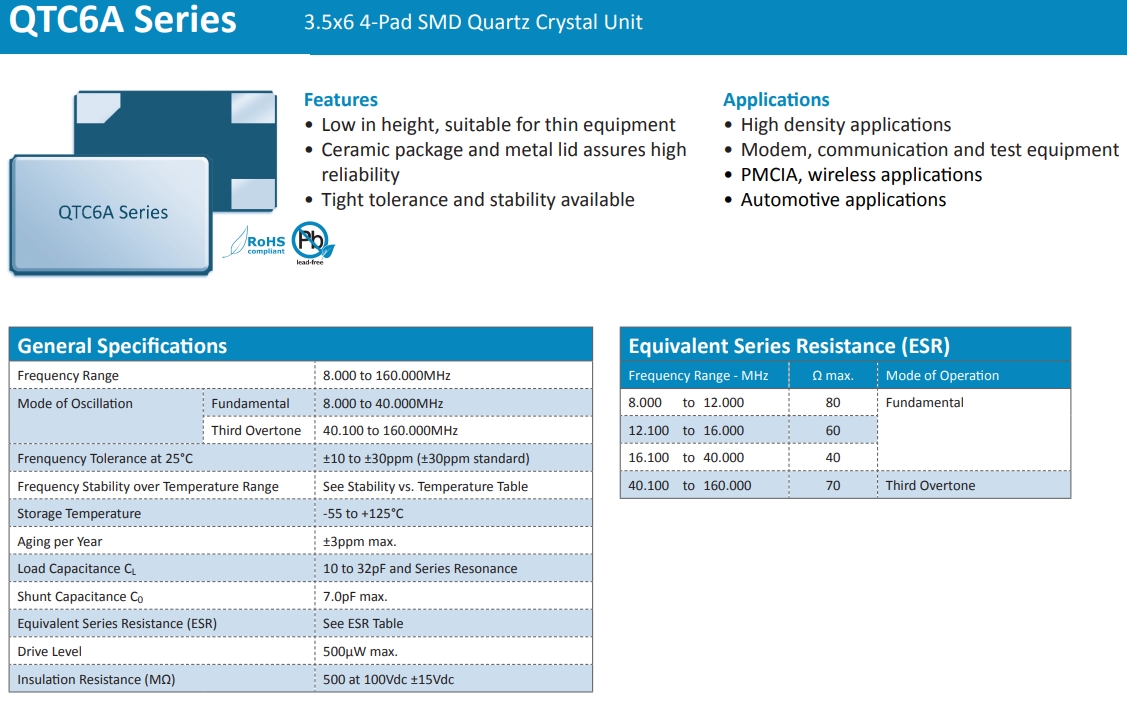

General Specifications

Frequency Range

14.74560MHz

Mode of Oscillation

Fundamental

8.000 to 40.000MHz

Third Overtone

40.100 to 160.000MHz

Frenquency Tolerance at 25°C

±10 to ±30ppm (±30ppm standard)

Frequency Stability over Temperature Range

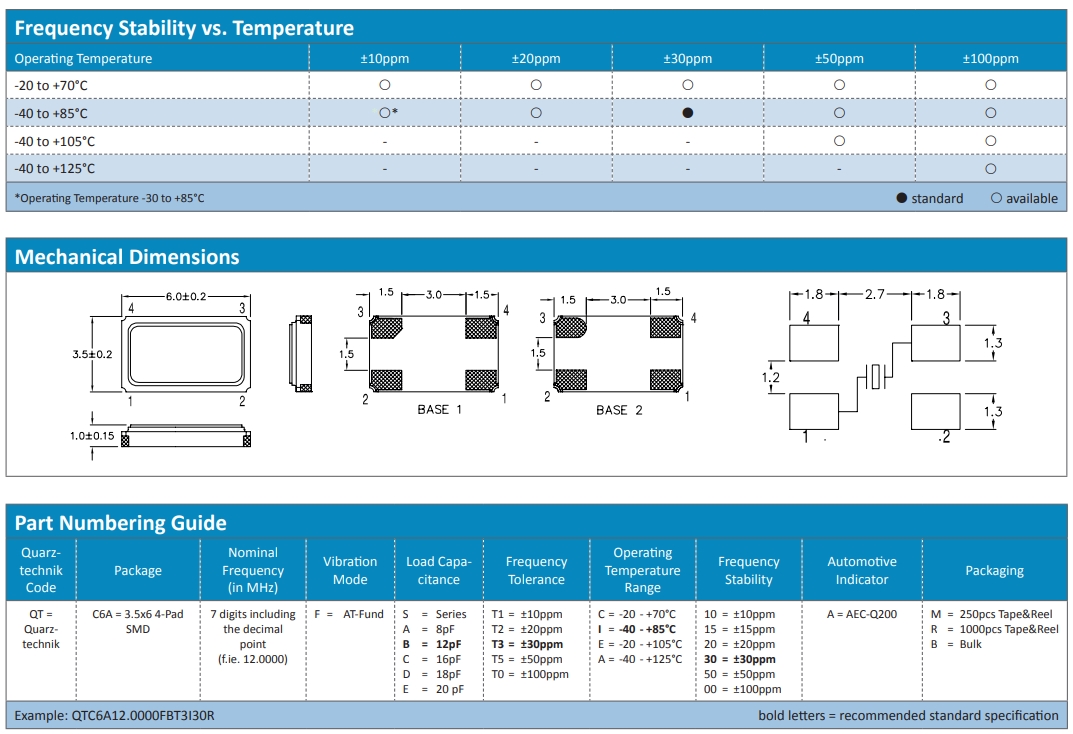

See Stability vs. Temperature Table

Storage Temperature

-55 to +125°C

Aging per Year

±3ppm max.

Load Capacitance CL

10 to 32pF and Series Resonance

Shunt Capacitance C0

7.0pF max.

Equivalent Series Resistance (ESR)

See ESR Table

Drive Level

500μW max.

Insulation Resistance (MΩ)

500 at 100Vdc ±15Vdc

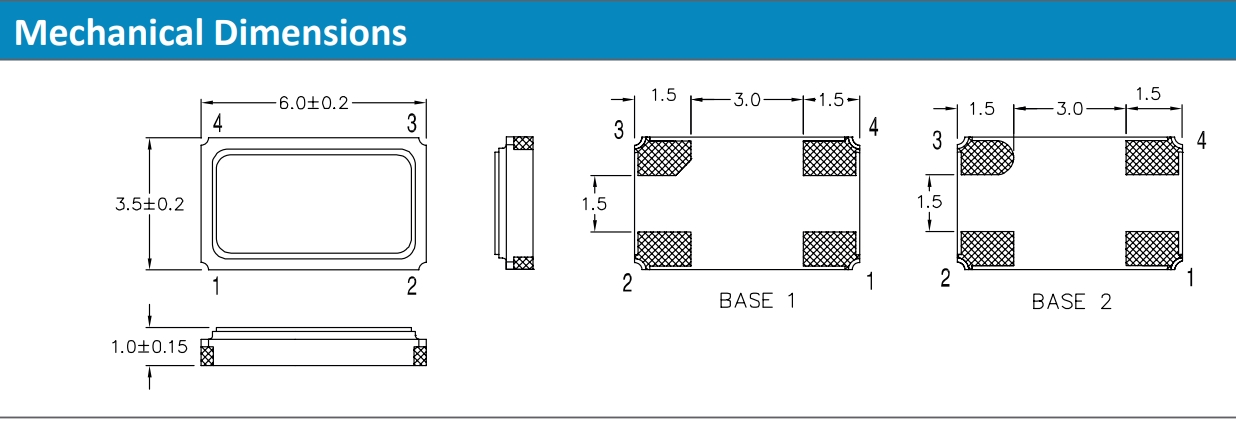

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M 尺寸圖

QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M

貼片石英晶振產品特性：

高度低，適用于薄型設備

陶瓷包裝和金屬蓋確保可靠性

具有緊密的公差和穩定性

Frequency	CL	Tolerance	Stability	Temp. Range	Part number	廠家
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A8.00000FDT1I20M	Quarztechnik夸克晶振
10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A10.0000FDT1I20M	Quarztechnik夸克晶振
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A11.0592FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A12.0000FDT1I20M	Quarztechnik夸克晶振
14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.31818FDT1I20M	Quarztechnik夸克晶振
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.7456FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A16.0000FDT1I20M	Quarztechnik夸克晶振
19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A19.6608FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A24.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A27.0000FDT1I20M	Quarztechnik夸克晶振
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A32.0000FDT1I20M	Quarztechnik夸克晶振
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A8.00000FDT1I20M	Quarztechnik夸克晶振
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A11.0592FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A12.0000FDT1I20M	Quarztechnik夸克晶振
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A14.7456FDT1I20M	Quarztechnik晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A16.0000FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A20.0000FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A24.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A27.0000FDT1I20M	Quarztechnik夸克晶振
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A32.0000FDT1I20M	Quarztechnik夸克晶振
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A8.00000FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.0000FDT1I20M	Quarztechnik夸克晶振
12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.2880FDT1I20M	Quarztechnik夸克晶振
15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A15.3600FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A16.0000FDT1I20M	Quarztechnik夸克晶振
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A18.4320FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A20.0000FDT1I20M	Quarztechnik夸克晶振
24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A24.5760FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A27.0000FDT1I20M	Quarztechnik夸克晶振
30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A30.0000FDT1I20M	Quarztechnik夸克晶振
40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A40.0000FDT1I20M	Quarztechnik夸克晶振
48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A48.0000FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3216.0000FDT1I20M	Quarztechnik夸克晶振
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3218.4320FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3220.0000FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3224.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3225.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3227.0000FDT1I20M	Quarztechnik夸克晶振

QuarztechnikCrystal QTC6A無線設備晶振 QTC6A14.7456FDT1I20M

采購：QuarztechnikCrystal,QTC6A無線設備晶振,QTC6A14.7456FDT1I20M

*聯系人：
*手機：
公司名稱：
郵箱：
電話：
地址：
*采購意向：
*驗證碼：
